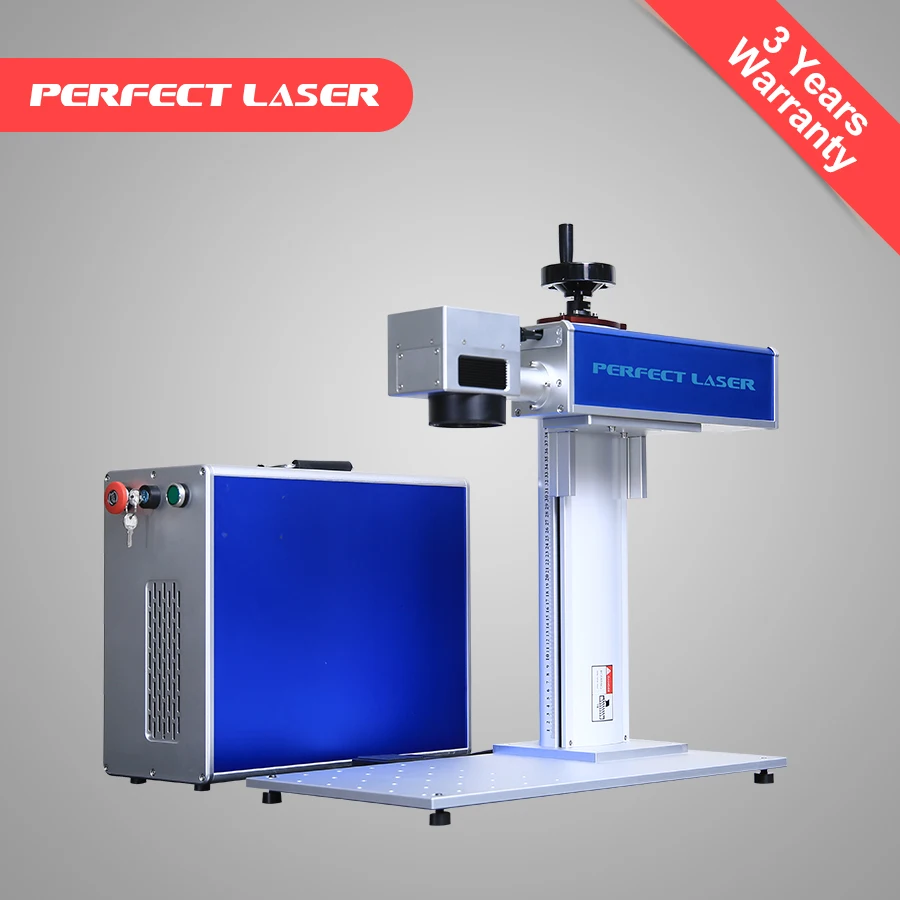

20W Desktop Fiber Laser Marking Machine for Metal

20W Desktop Fiber Laser Marking Machine
  • Seller Perfect Laser (Wuhan) Co., Ltd.
  • Min. Order 1 Unit/Units 20W Desktop Fiber Laser Marking Machine for Metal
  • FOB Price US $3500-4500 /Unit

Item Details

Port: Shanghai/Shenzhen/wuhan Port
Supply Ability: 5000 Unit/Units per Year mini laser metal engraving machine
Payment Terms: L/C,T/T,Western Union,MoneyGram,paypal, escrow

Product Description

20W Desktop Fiber Laser Marking Machine for Metal

(Model:PEDB-400B)

Product Description

Application Field and Material of mini laser metal engraving machine:

Electronic Components : Resistance, capacitance, chips, printed circuit boards, computer keyboard.

Apparatus And Meter: Panel signs, precision equipment ,etc.,

Instrument: Panel signs nameplates, precision equipment ,etc.,

Hardware Tools : Knives, tools, measuring tool, cutting tool, etc.,

Automobile Parts : Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.,

Mechanical Parts : Bearings, gears, standard parts, motors, etc.,

Daily Necessities : Handicrafts, zipper, key holder, sanitary ware, etc.,

Jewelry: Rings Jewelry, gold, silver,etc.

Food, drinking packing: Plastic packings,etc.

Product Feature of mini laser metal engraving machine:

Perfect Laser’s laser marking machine suppliers adopts international most advanced technology and the laser source is fiber with USA IPG technology, lifetime can reach 100,000 hours, 8-10 years without any consumables and maintenance. we have 2 years warranty time for our laser source ,The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser beam. This is the best choice for the customers who have special requirements to the smallest & finest laser beam and character.

Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 22kg.

High Precision: Re-position precision is 0.002mm

High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s

Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.

High Reliability: MTBF>100,000 hours

Model No.

PEDB-400A

PEDB-400B

PEDB-400C

PEDB-400D

Type

Portable

Desktop

Colorful

Floor Stand

PC includes or not

Not includes PC

includes PC

Laser Source

IPG Series:

Pulsed, High Energy Ytterbium Fiber Lasers

Mode of operation

Pulsed

Polarization:

random

Nominal average output power

10W - 20W

Central emission wavelength:

1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%

Emission Bandwidth (FWHM)

<10 nm

Long-term average power instability

<5%

Pulse width, (FWHM)

100 ns

Laser switching ON time

180 μsec

Laser switching OFF time

180 μsec

Pulse Repetition Rate* kHz

20-80 kHz

Energy per pulse (PRR = 20 kHz)

0.95 mJ

Typical beam quality, M2

<1.8

Output fiber delivery length

3m

Operating voltage:

220V

Max. Power consumption:

600W

Net Dimensions:

70*20*50cm

58*22*50cm 80*38*72cm

70*20*50cm

143*62*101cm

Net Weight:

44 kgs

53 kgs

44 kgs

130 kgs

Gross Weight:

60 kgs

70 kgs

60 kgs

150 kgs

Laser system

Scanning Speed:

0-7000mm/s

Marking Speed:

0-5000mm/s

Marking size:

110mm×110mm (F-theta 160)

Spot size:

≤ 40 micron (F-theta 160)

Cooling unit:

Air cooled

Pilot laser:

650nm diode laser, visible red light for marking guide

Continuous working time:

≥16h

Humidity:

45~85% (no condensation)

Operating temperature:

0~40°C

Control units

CT-MARK (English Version)

Machine Details

Training, Commissioning & Start up of Machine:

You also have no need to worry about this,we will provide service as follows:


1:Free Training by VCD: We will supply the machine with <Training VCD> , <User's Manual> and <Instruction Book> in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting. (Recommend)
2:Free Training in Perfect Laser's Factory: You can sent operator to Perfect Laser factory for free training. Perfect Laser will offer professional guide for free. It is direct and effective face-to-face training. Here we have well-assembled equipments, all sorts of tools and testing facility.
Training Time: 1-3 days (Recommend)
3:Our engineer can do a door-to-door instruction training service at your local site if you need.

Quality Guarantee & After-Sales Services:

The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.

Company Introduction

We, Perfect Laser, As a 21 years history industrial equipment manufacture in laser field, 10 year Golden Supplier in Alibaba, with TUV/ISO/FDA, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
